iFixit Game Console Toolkit, tool kit for game consoles, 16 bits

iFixit Game Console Toolkit combines 16 precision bits with tools for opening and cleaning game consoles and their accessories in a practical portable case.



iFixit Game Console Toolkit is a tool kit designed for servicing modern and retro gaming devices.
It is intended for opening, cleaning, and working on consoles and their accessories.

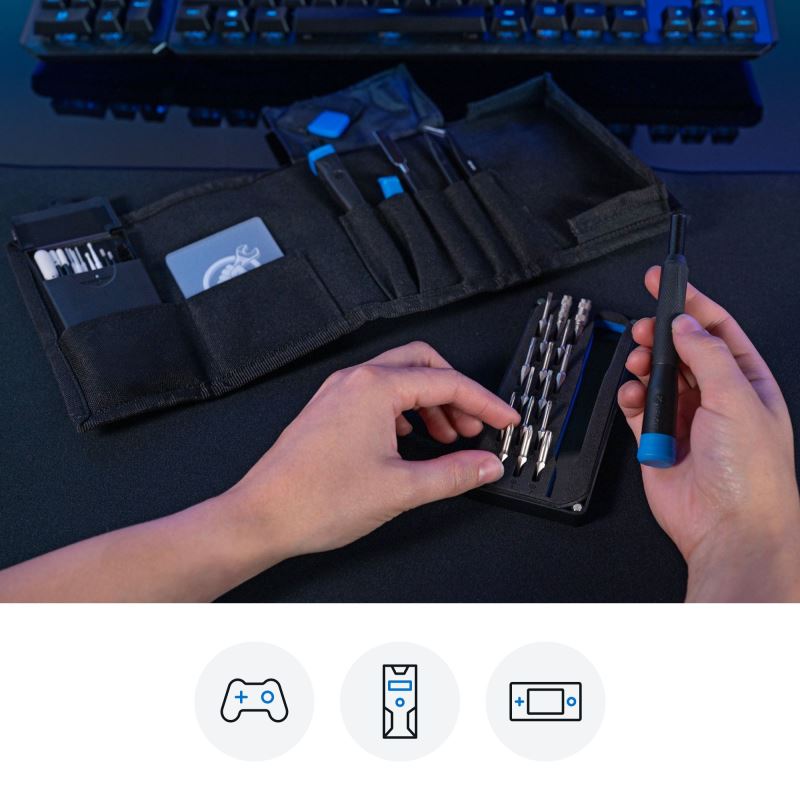

At the core of the kit is a screwdriver with a 4 mm bit holder and 16 interchangeable bits.
The selection covers various types of screws used in gaming hardware.
The bits are made of S2 steel, and the screwdriver handle is made of polymer.

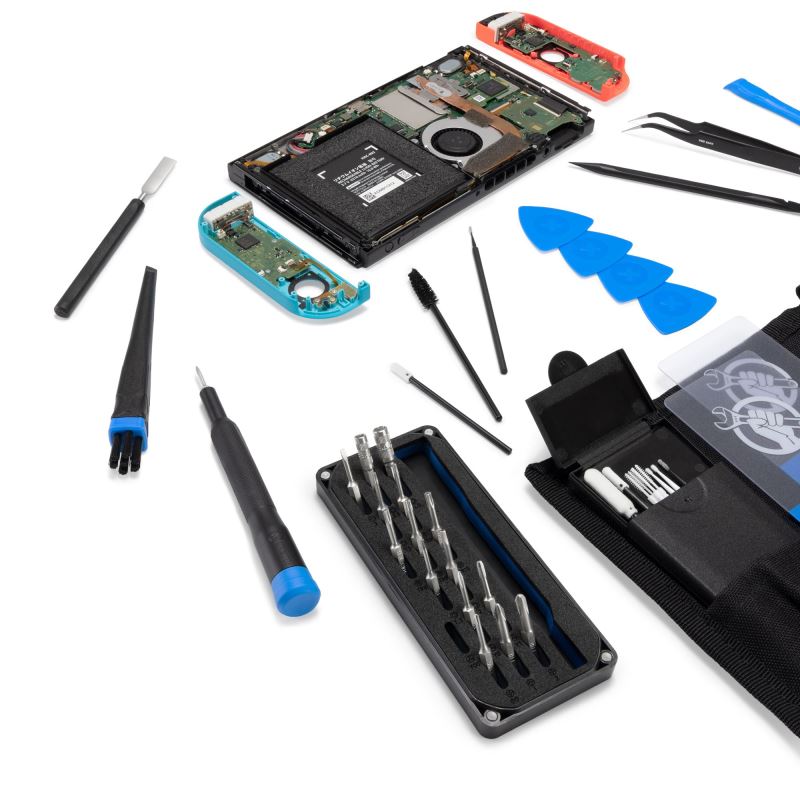

The kit also includes tools for opening housings and handling small components.
The cleaning tools allow maintenance to be carried out while the device is disassembled.
All tools are stored in a polyester fabric tool roll.

The tool roll makes it easier to organise the tools and carry the entire kit.
The kit therefore provides practical equipment for servicing gaming devices in one place.

• Kit for servicing modern and retro game consoles and accessories.
• Screwdriver with a 4 mm bit holder and 16 S2 steel bits.
• Opening tools and tweezers for disassembly and handling.
• Cleaning brushes and swabs for device maintenance.
• Polyester tool roll for storage and transport.

BITS FOR DIFFERENT TYPES OF SCREWS
The kit combines common and specialised bit profiles used in gaming devices.
All 16 bits are made of S2 steel and are used with the included 4 mm screwdriver.

DISASSEMBLY TOOLS

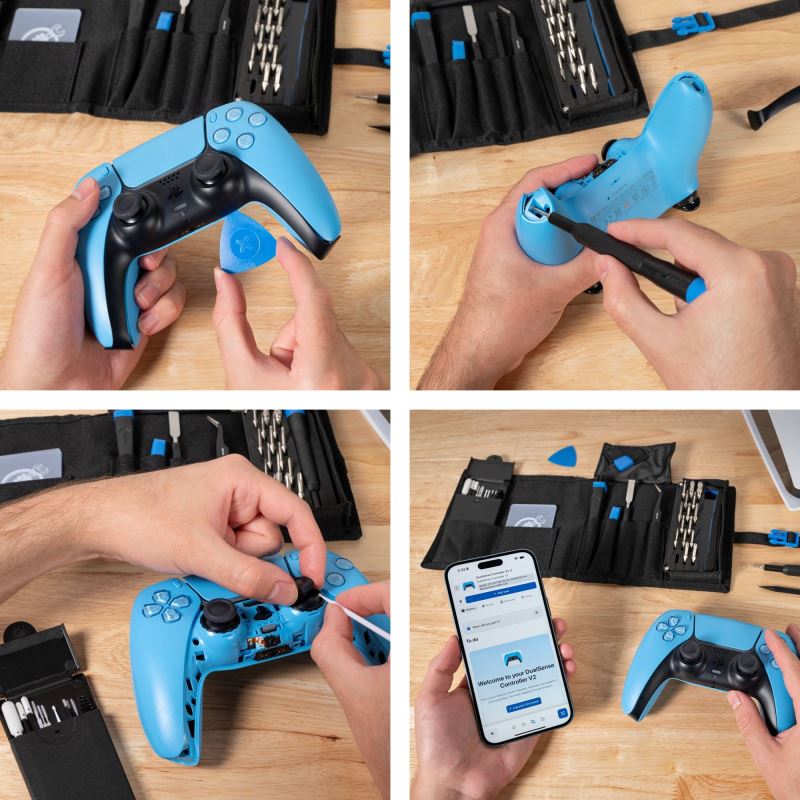

The opening tools complement the screwdriver when disassembling devices.
The tweezers allow small components to be handled.

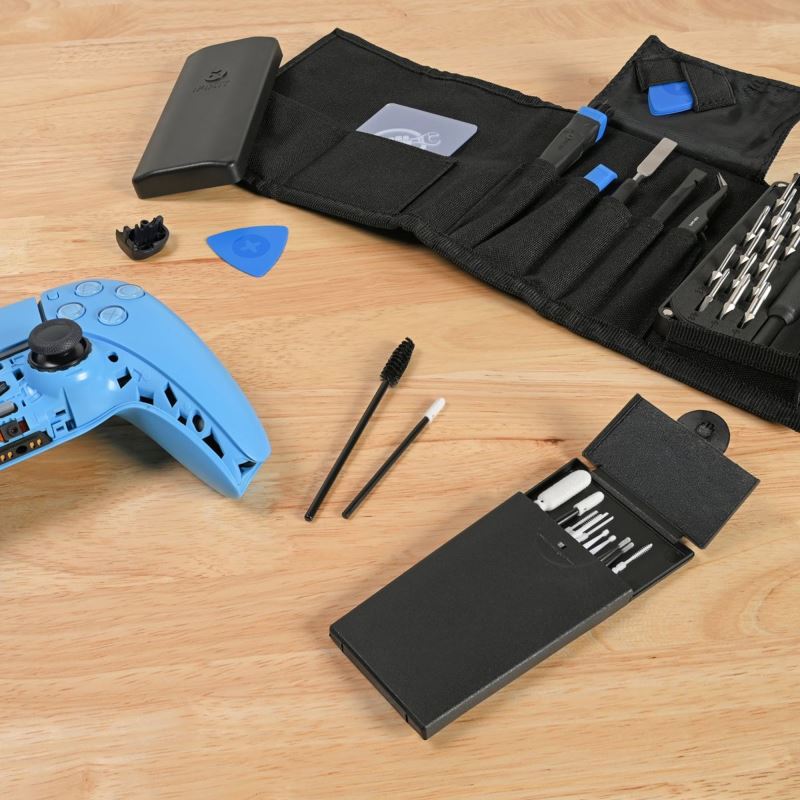

CLEANING AND MAINTENANCE
The brushes and cleaning swabs help remove dirt.
The kit also includes an ESD-safe Scrubber cleaning brush.

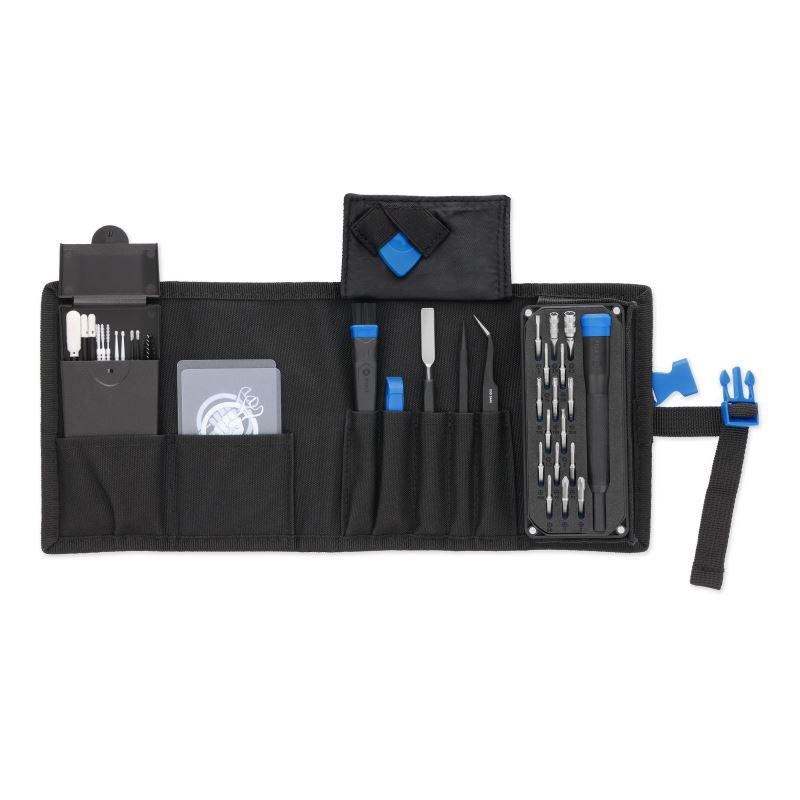

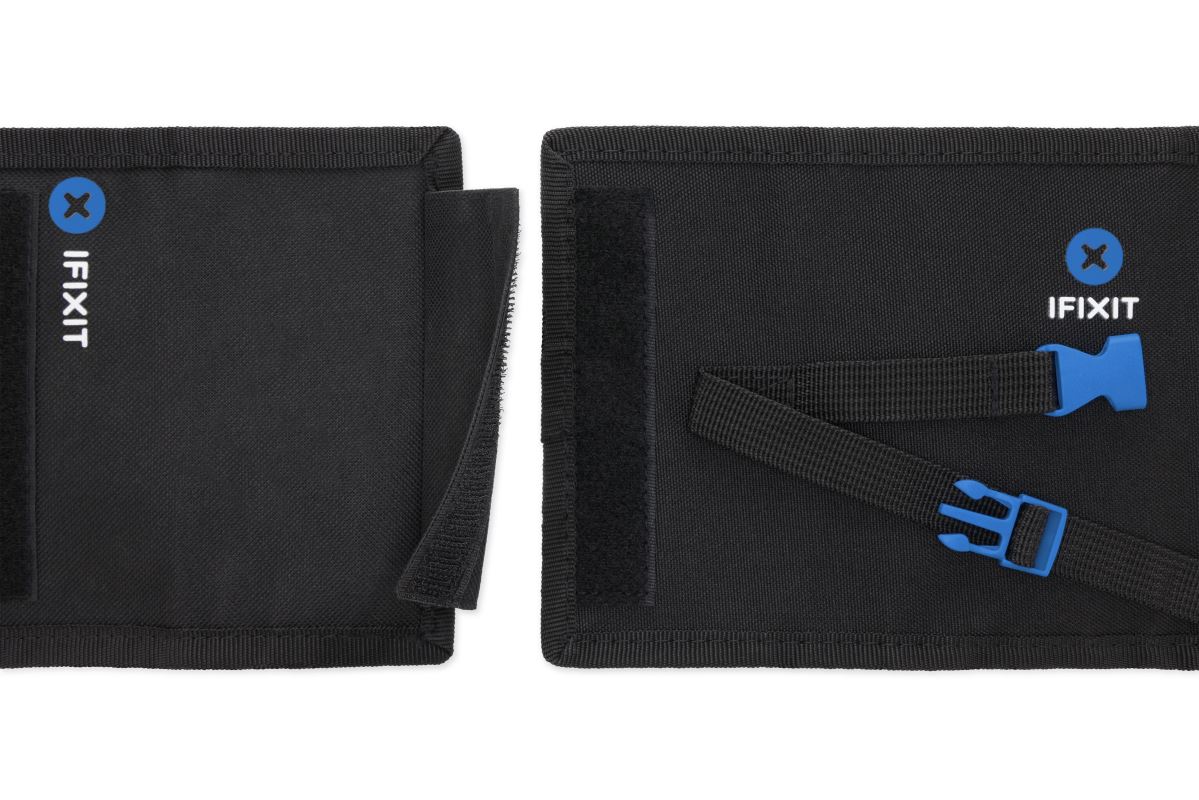

PORTABLE CASE
The polyester tool roll keeps the tools together.
It includes space for the separately sold Thermal Performance Kit, which is not included.

TECHNICAL SPECIFICATIONS

PN: IF145-895-1
Product type: tool kit for game consoles
Intended use: opening, cleaning, and servicing consoles and accessories
Number of bits: 16
Bit holder size: 4 mm
Bit material: S2 steel
Screwdriver handle material: polymer
Tool roll material: polyester fabric
Bit case material: ABS
Foam insert material: EVA
Country of origin: Taiwan

COMPATIBILITY / APPLICATION

• PlayStation
• Xbox
• Nintendo Switch

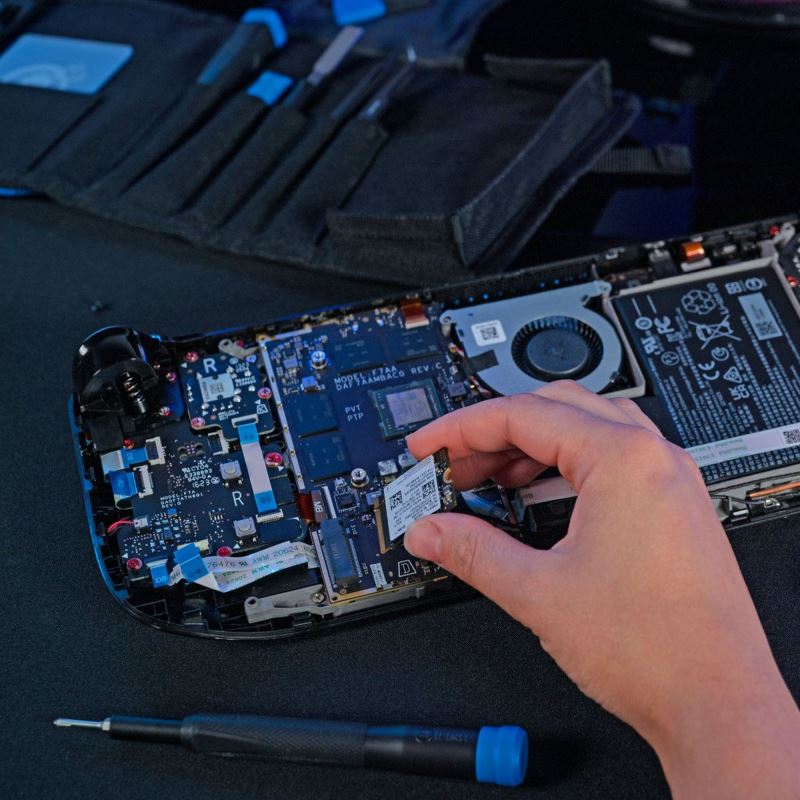

• Steam Deck
• Nintendo DS and 3DS
• Retro game consoles, including Nintendo NES
• The suitability of individual tools depends on the specific model and servicing task.

DIMENSIONS AND WEIGHT

9 x 15.5 x 8 cm / 341 g

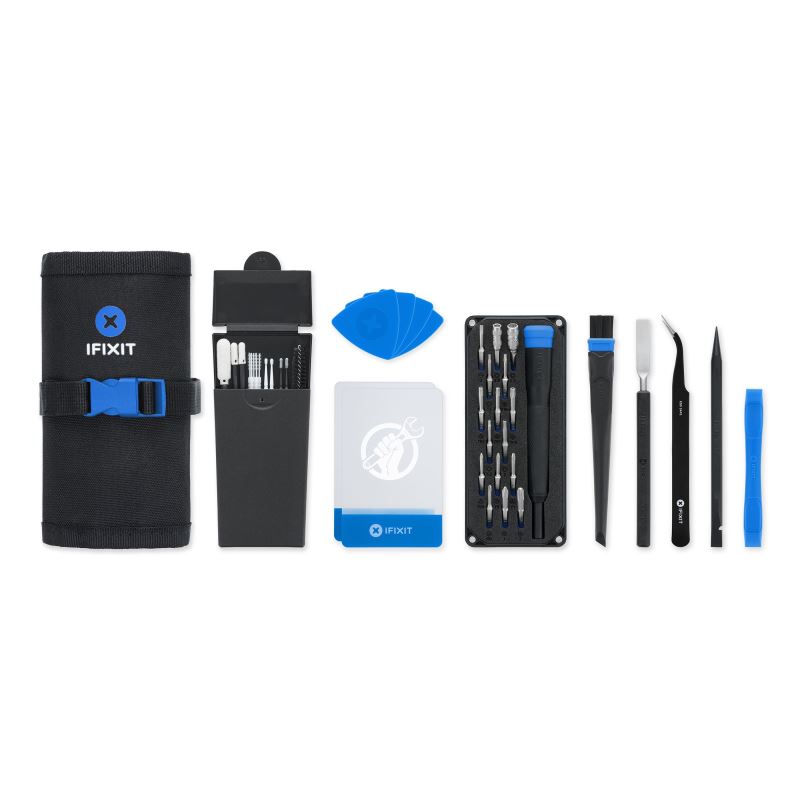

PACKAGE CONTENTS

• Screwdriver for 4 mm bits.
• 16 bits:
• Flathead: 2.0 mm.
• Gamebit: 3.8 and 4.5 mm.
• Hex: 1.5 and 2.0 mm.
• Phillips: PH00, PH1 and PH2.
• Torx: T5.
• Torx Security: TR6, TR8, TR9 and TR10.
• Tri-point: Y00, Y0 and Y1.
• 4 opening picks.
• Opening tool.
• 2 plastic cards.
• Spudger pry tool.
• Metal Spudger pry tool.
• Angled tweezers.
• 13-piece assortment of cleaning brushes and swabs.
• ESD-safe Scrubber cleaning brush.
• Bit case.
• Fabric tool roll.

This product does not generate any data.
