Technaxx Crank DAB radio with solar panel with charging (TX-414)

Multifunctional emergency DAB+ radio with hand crank generator, solar charging, 2000 mAh power bank, Bluetooth 5.3, flashlight with SOS function and 2" color TFT display.

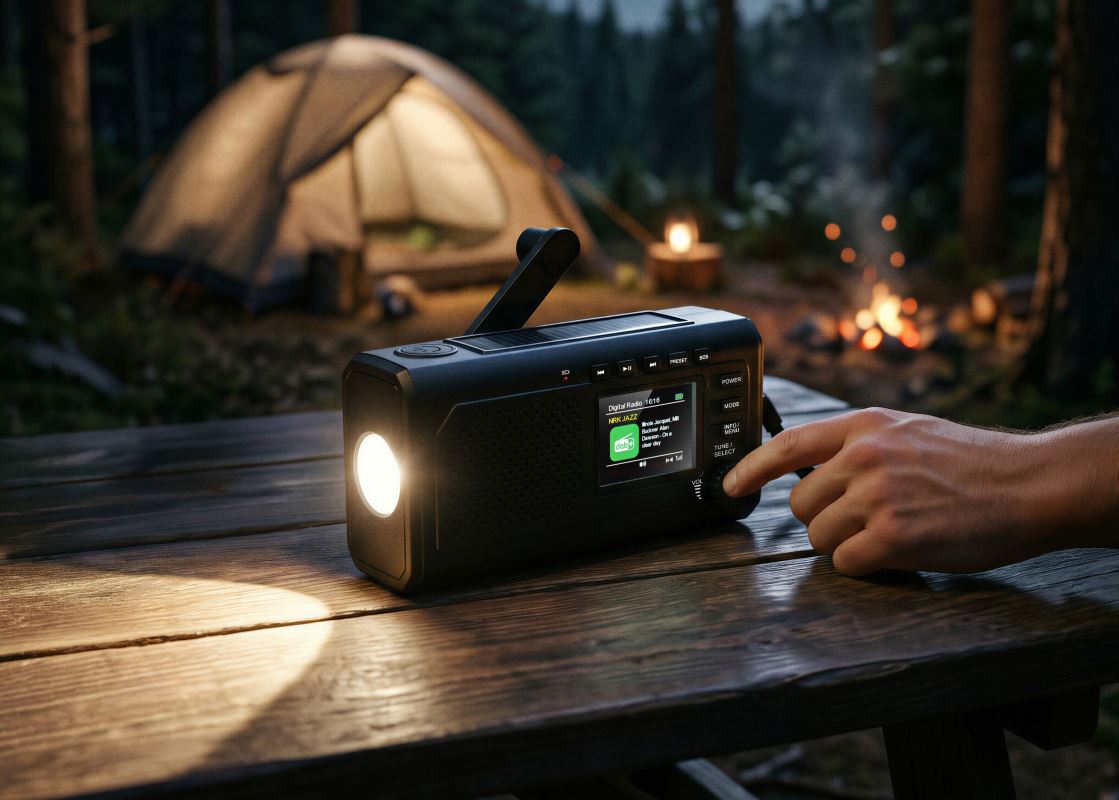

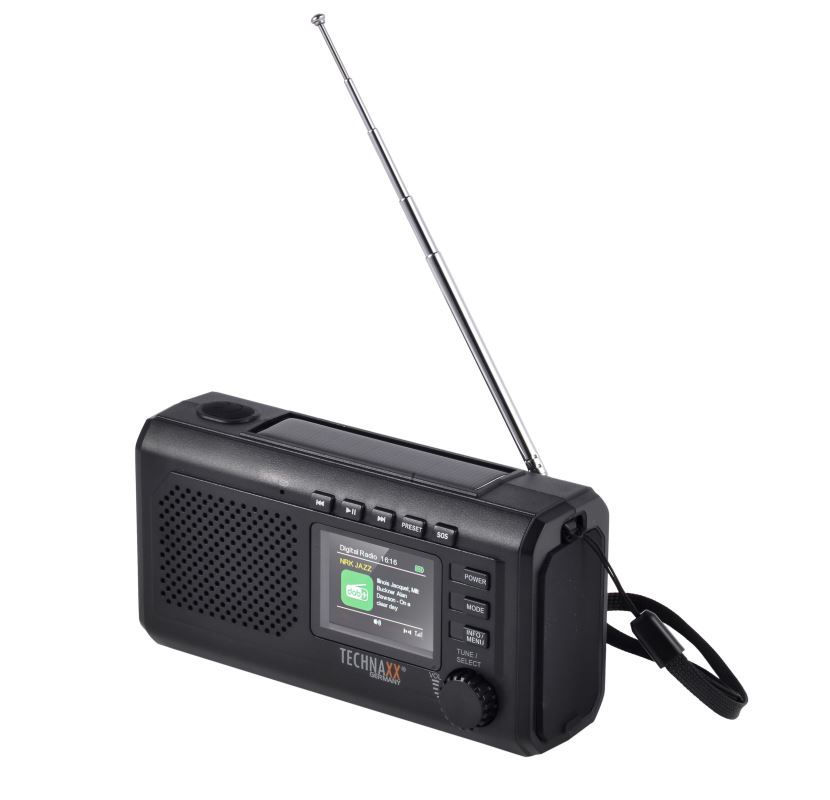

Technaxx Crank Emergency DAB Radio TX-414 is a portable radio designed not only for everyday listening, but also for situations where a standard electrical power source is unavailable. In addition to USB-C charging, its integrated battery can be recharged using the hand crank or built-in solar module.
The radio supports DAB+ reception in the 174–240 MHz band and FM 87.5–108 MHz. Music can also be played wirelessly via Bluetooth 5.3 or from a MicroSD card with a capacity of up to 128 GB. Station information and settings are shown on the 2" color TFT display.
The integrated 18650 Li-Ion battery with a capacity of 2000 mAh provides an operating time of up to 10 hours. The USB-A output also allows the radio to be used as a power bank for charging a phone or other device.
For emergency situations, the TX-414 is equipped with an LED flashlight and SOS function. A dedicated SOS button simultaneously activates an audible alarm and flashing LED light.

• DAB+ 174–240 MHz and FM 87.5–108 MHz reception
• Charging via USB-C, hand crank or solar module
• Integrated 2000 mAh Li-Ion battery
• Power bank function via USB-A, output up to 5 V / 1 A
• Bluetooth 5.3 with a range of approximately 10 m
• Playback from MicroSD card up to 128 GB
• 2" (5.2 cm) color TFT display
• 3 W speaker
• LED flashlight with SOS mode
• Dedicated SOS function with audible alarm and flashing light
• Telescopic antenna
• 3.5 mm headphone output
• Operating time up to 10 hours

THREE CHARGING OPTIONS
The integrated battery can be charged via USB-C with a maximum input of 5 V / 1 A. In situations without access to mains power, the hand crank generator or built-in solar panel can be used.
Energy generated by the hand crank or solar panel is stored directly in the radio's battery.
Full charging takes up to 3 hours using a power adapter, up to 6 hours using the hand crank and up to 35 hours using the solar module.

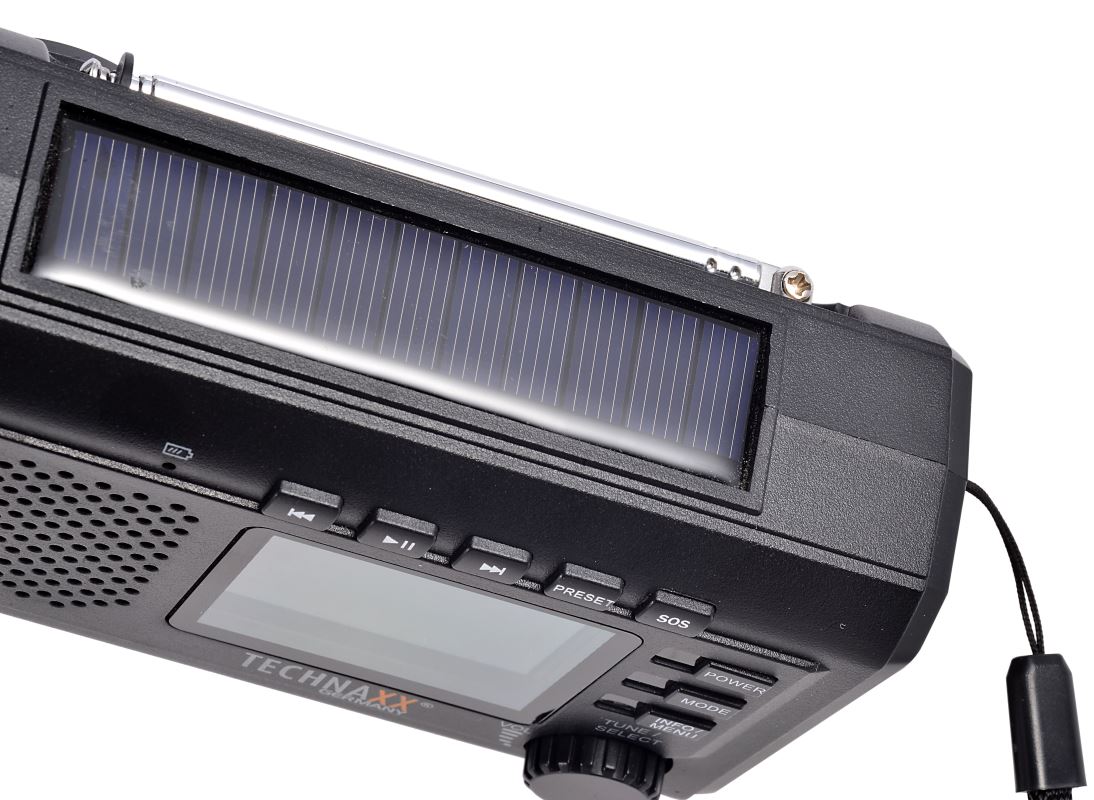

For solar charging, the stated value applies under suitable lighting conditions; the maximum current of the solar panel is 60 mA in full sunlight.

DAB+ AND FM RADIO

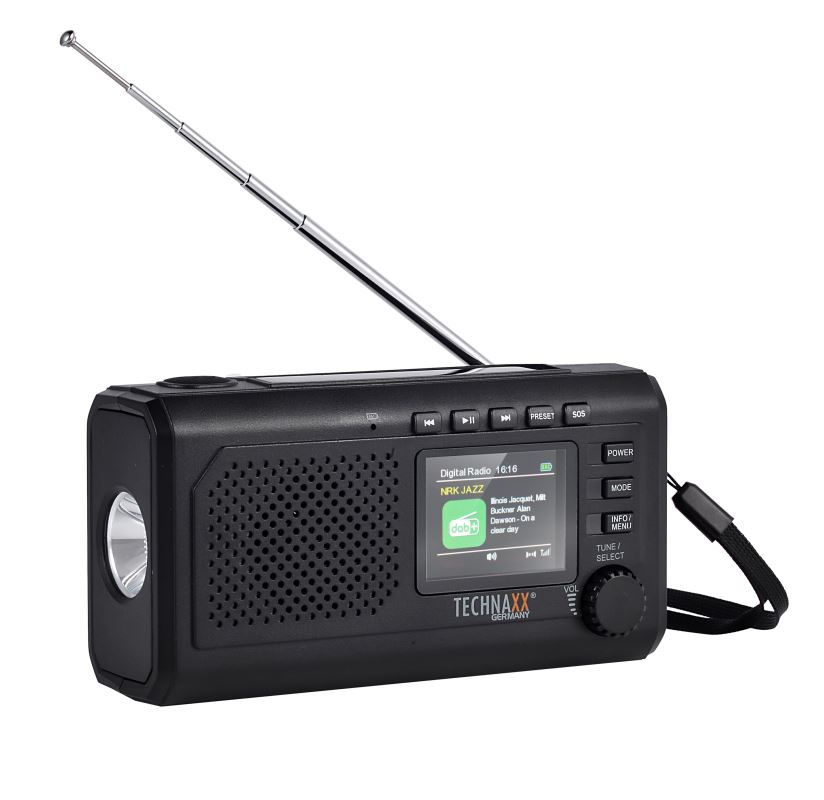

TX-414 receives DAB+ digital radio broadcasts in the 174–240 MHz range and analog FM broadcasts in the 87.5–108 MHz range. For reception, it is equipped with a telescopic antenna with an adjustable length from 9.2 to 30 cm. Up to 40 station presets can be stored for both DAB and FM.

BLUETOOTH AND MICROSD
Bluetooth 5.3 allows audio to be played from a phone or other compatible device through the radio's integrated speaker. The specified Bluetooth connection range is approximately 10 meters.
Another option is playback from a MicroSD card up to 128 GB, Class 10. MP3 audio format is supported for playback from the card.

2000 mAh POWER BANK
The built-in battery can also be used to charge other devices. A USB-A output with max. DC 5 V / 1 A is provided for this purpose. The integrated 18650 Li-Ion battery has a capacity of 2000 mAh at 3.7 V.

FLASHLIGHT AND SOS FUNCTION
The integrated LED flashlight provides a brightness of 150 lux. The LED button can be used to switch from standard illumination to an SOS light signal. The radio also features a dedicated SOS button that activates an audible alarm and flashing LED light simultaneously.

2" COLOR TFT DISPLAY
The 2" (5.2 cm) color TFT display shows radio station information and provides access to device settings. The system allows you to set the time and date, alarm, sleep timer, display brightness or language, among other options.


TECHNICAL SPECIFICATIONS
Model: Technaxx Crank Emergency DAB Radio TX-414
PN: 5506
Display: 2" (5.2 cm) color TFT
DAB+: 174–240 MHz
FM: 87.5–108 MHz
Number of Presets: Up to 40 DAB + 40 FM
Bluetooth: 5.3
Bluetooth Range: Approx. 10 m
Bluetooth Frequency: 2.4 GHz
Max. Bluetooth Radiated Power: 2.5 mW
Speaker: O 40 mm / 4 Ω
Speaker Power: 3 W
Audio System: Mono
Frequency Range: 100 Hz–18 kHz
MicroSD: Max. 128 GB, Class 10
Supported MicroSD Format: MP3

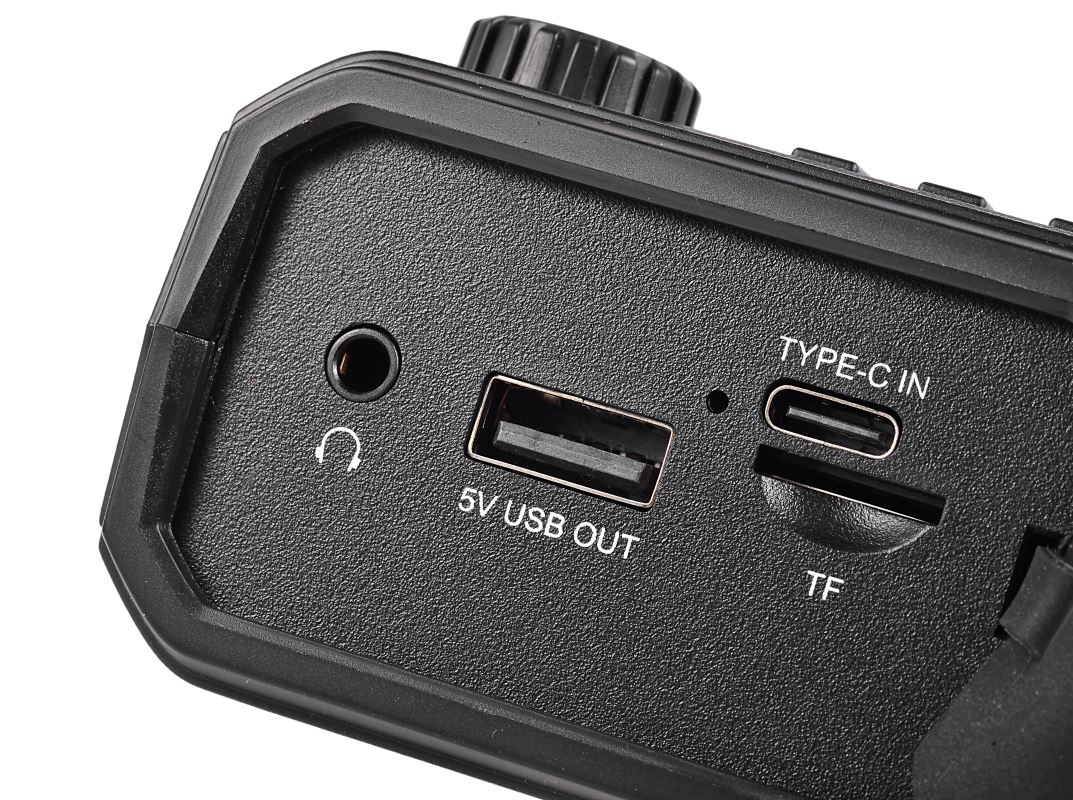

Headphone Output: 3.5 mm
USB-C Input: Max. DC 5 V / 1 A
USB-A Output: Max. DC 5 V / 1 A

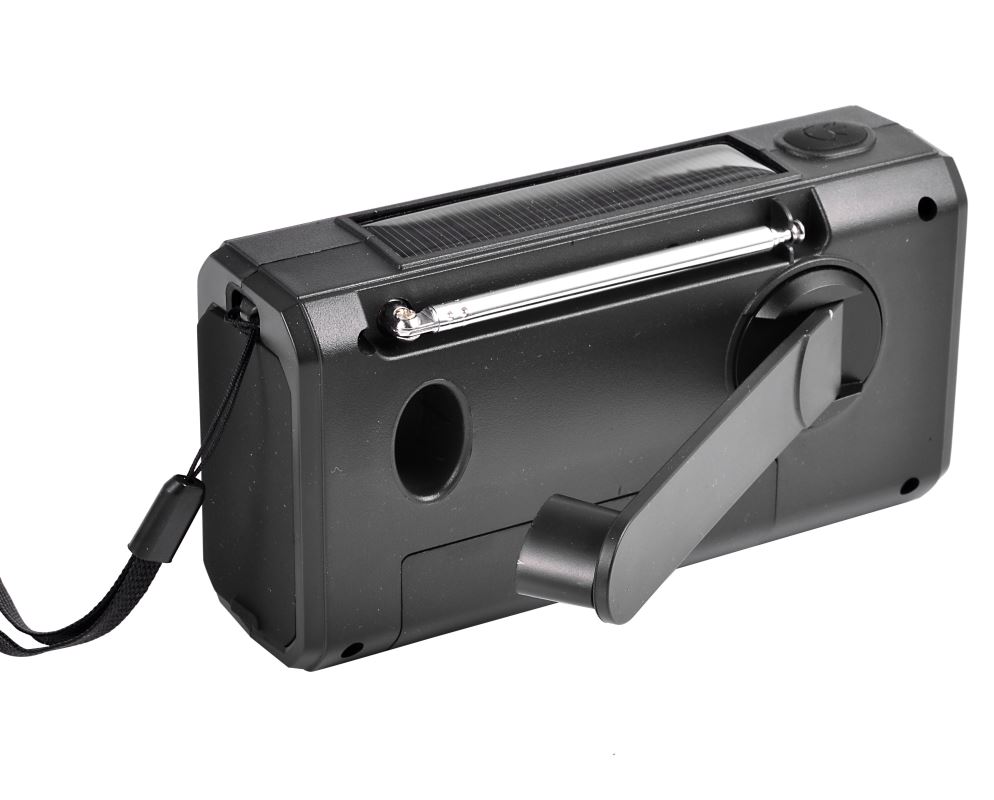

Hand Crank Generator: Max. 400 mA
Solar Panel: Max. 60 mA in full sunlight
Battery: Li-Ion 18650, 3.7 V / 2000 mAh
Charging Time via Adapter: Up to 3 hours
Charging Time via Hand Crank: Up to 6 hours
Charging Time via Solar Module: Up to 35 hours
Operating Time: Up to 10 hours
LED Flashlight Brightness: 150 lux
Telescopic Antenna: 9.2–30 cm
Material: PC + ABS + silicone
Operating Temperature: 0 to 40 °C
Dimensions and Weight: 14.8 × 8 × 5.4 cm / 290 g
Package Dimensions and Weight: 15 × 10 × 6.5 cm / 370 g


PACKAGE CONTENTS

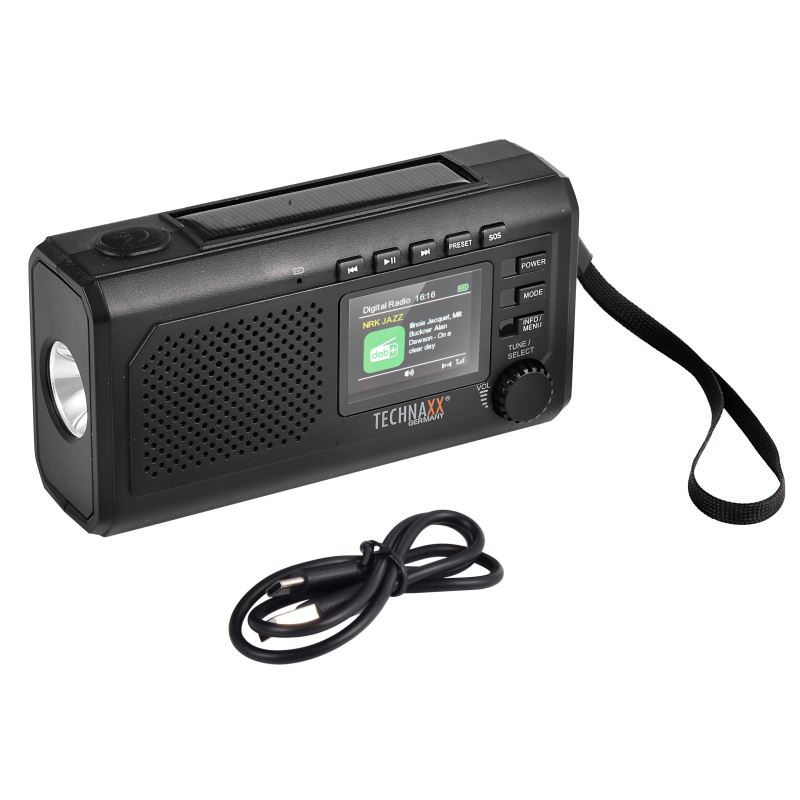

• Technaxx Crank Emergency DAB Radio TX-414
• USB cable
• User manual

This product does not generate any data.
