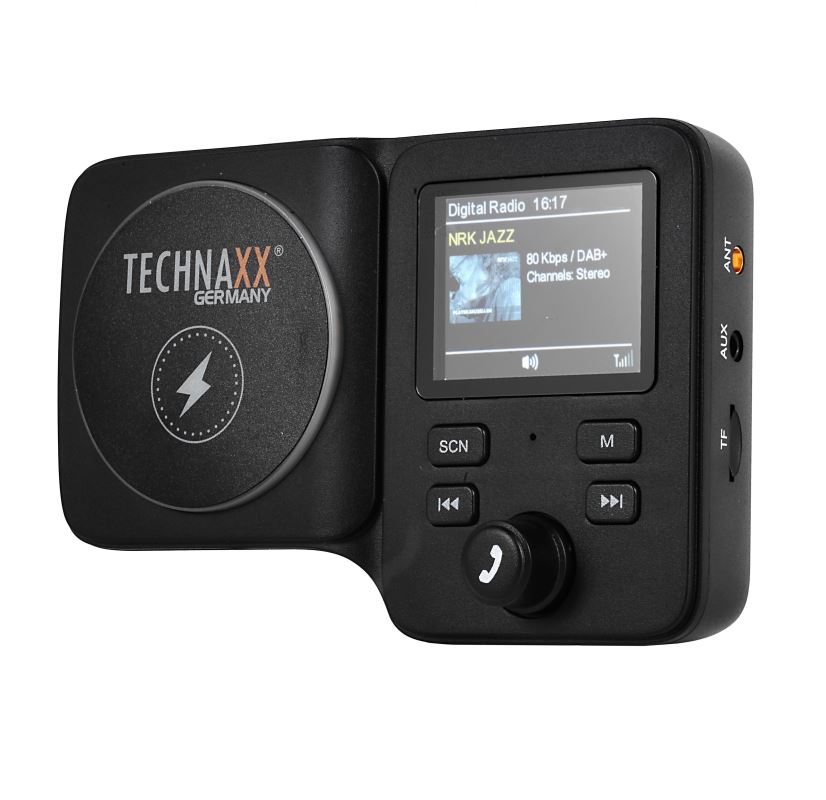

FM Transmitter 1800 DAB+ with magnetic mount + wireless charging (FMT1800)

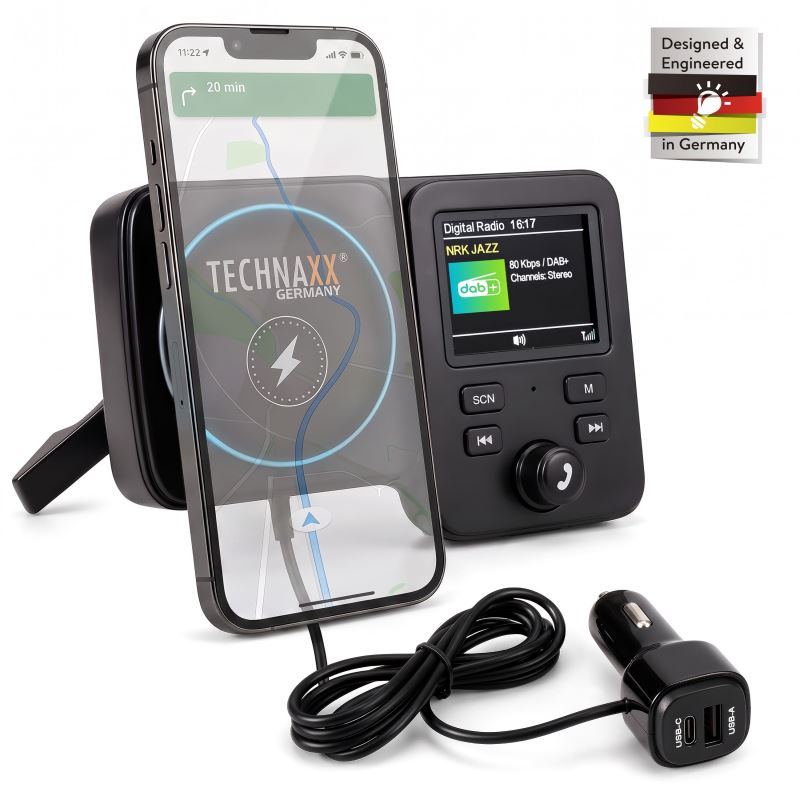

Multifunctional FM transmitter for cars with DAB+ reception, Bluetooth 5.3, 2" color TFT display, magnetic phone holder, wireless charging up to 15 W and hands-free function.

Technaxx FMT1800 DAB+ expands the capabilities of a car radio with DAB+ digital radio reception and wireless music playback. Audio is transmitted to the vehicle's audio system via a selected FM frequency, allowing the device to be used even with car radios without integrated DAB+ or Bluetooth.
The device supports playback via Bluetooth 5.3, MicroSD card and 3.5 mm AUX input. The integrated 2" color TFT display shows the information required to control the individual functions.
The design includes a magnetic surface for attaching a compatible phone and wireless charging with an output of 5–15 W. The device supports BPP, EPP and PPDE standards. USB-C and USB-A ports with a combined output of up to 12 W are available for wired charging.
FMT1800 can be mounted on the air vent or attached to the windshield or dashboard using the suction cup mount. Power is supplied from a 12–24 V vehicle power socket.

• AB+ digital radio reception in the 174–240 MHz band
• FM transmitter for wireless audio transmission to the car radio
• Bluetooth 5.3 with a range of approximately 10 m
• 2" / 5.2 cm color TFT display
• Magnetic attachment for a compatible phone
• Wireless charging 5–15 W
• BPP, EPP and PPDE wireless charging standards
• USB-C + USB-A for wired charging, combined output up to 12 W
• Playback from MicroSD card up to 64 GB
• MP3 and WMA format support
• 3.5 mm AUX input
• Hands-free function with integrated microphone
• Air vent mounting or suction cup mounting
• Powered from a 12–24 V vehicle power socket

DAB+ RECEPTION AND FM TRANSMISSION
FMT1800 receives DAB+ digital radio broadcasts in the 174–240 MHz band. In DAB mode, an automatic scan for available stations can be started and the control buttons can then be used to switch between them. Selected stations can be saved as presets.
Audio from the device is then transmitted to the car radio via an FM frequency. The FM transmitter operates in the 87.5–108.0 MHz range with 0.1 MHz increments and a specified range of approximately 5 m.

BLUETOOTH 5.3 AND MUSIC PLAYBACK
Bluetooth 5.3 allows you to connect a smartphone or other compatible Bluetooth device. The specified wireless range is approximately 10 meters. After initial pairing, FMT1800 attempts to automatically reconnect to the last connected device.
Music can also be played from a Class 10 MicroSD card with a capacity of up to 64 GB. MP3 and WMA audio formats are supported. In MicroSD mode, you can switch between sequential playback, single-track repeat and random playback.

WIRELESS CHARGING AND MAGNETIC HOLDER
The integrated charging surface supports wireless charging from 5 to 15 W and BPP, EPP and PPDE standards.
During use, the phone is placed on the magnetic part of the device, allowing FMT1800 to function as both a phone holder and a wireless charger.

USB-C AND USB-A CHARGING

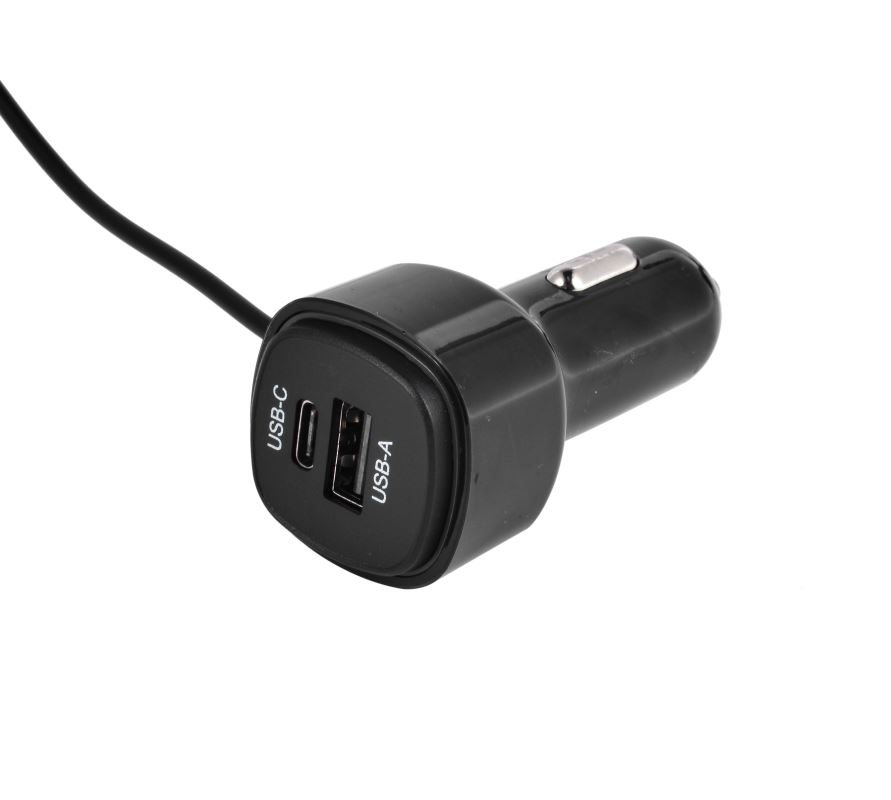

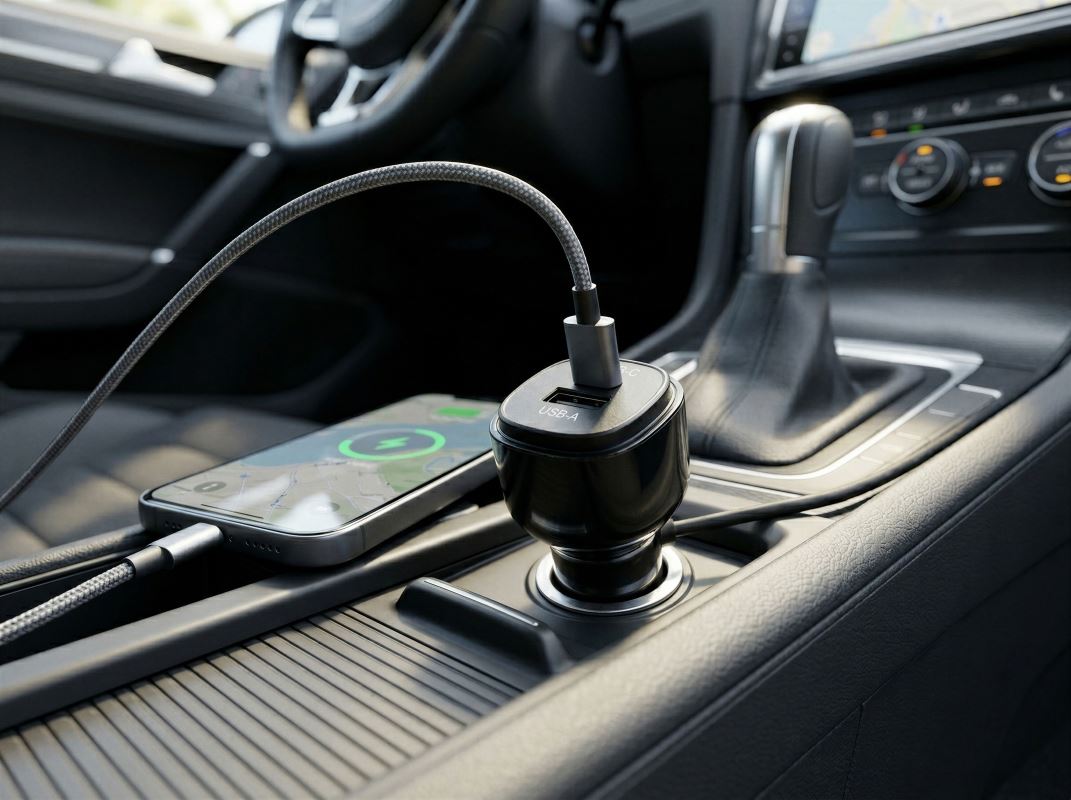

The vehicle power socket adapter features a USB-C and USB-A port. Both ports share a 5 V / 2.4 A output, providing a total maximum power of 12 W.

HANDS-FREE FUNCTION
The built-in microphone also allows FMT1800 to be used as a hands-free device.

TWO MOUNTING OPTIONS

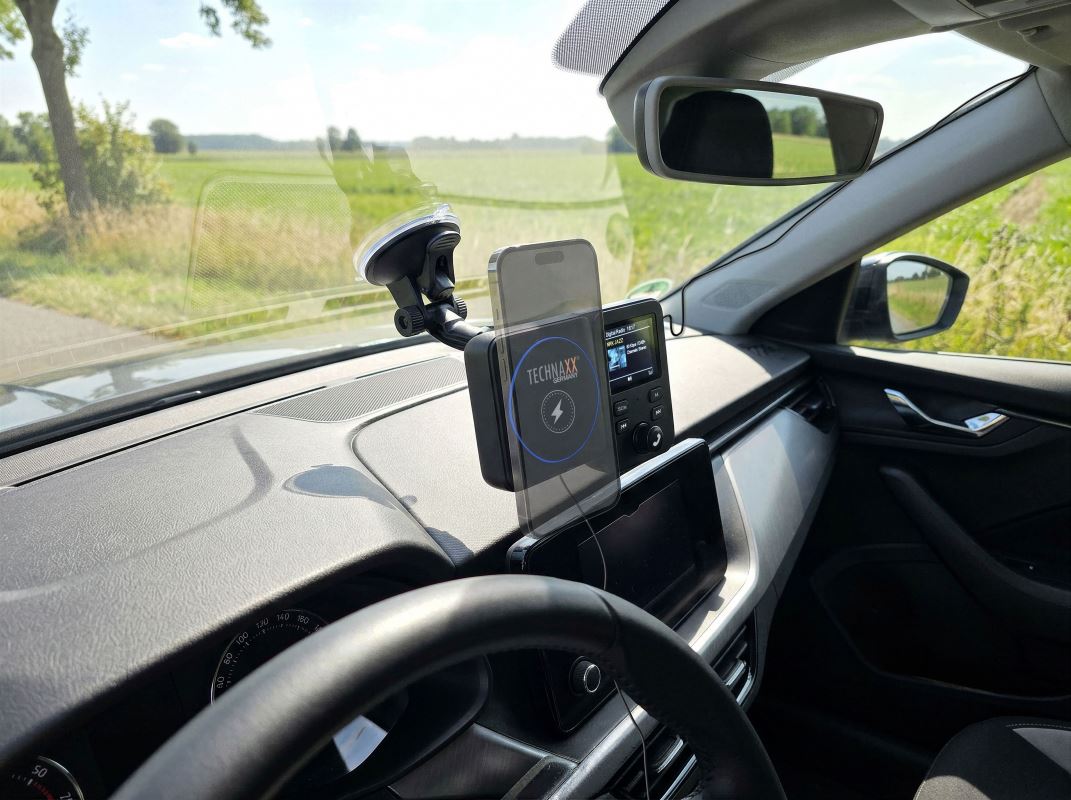

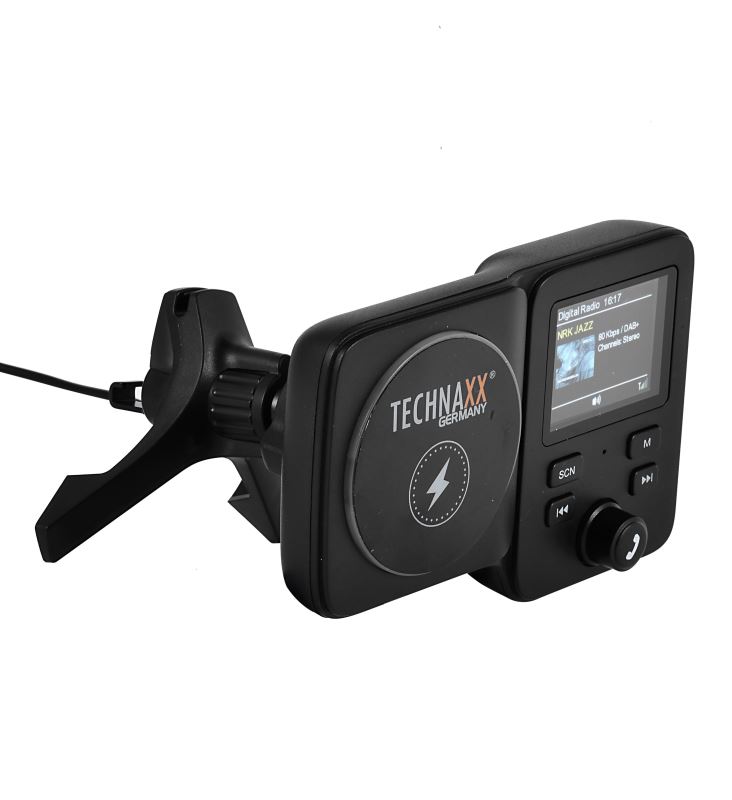

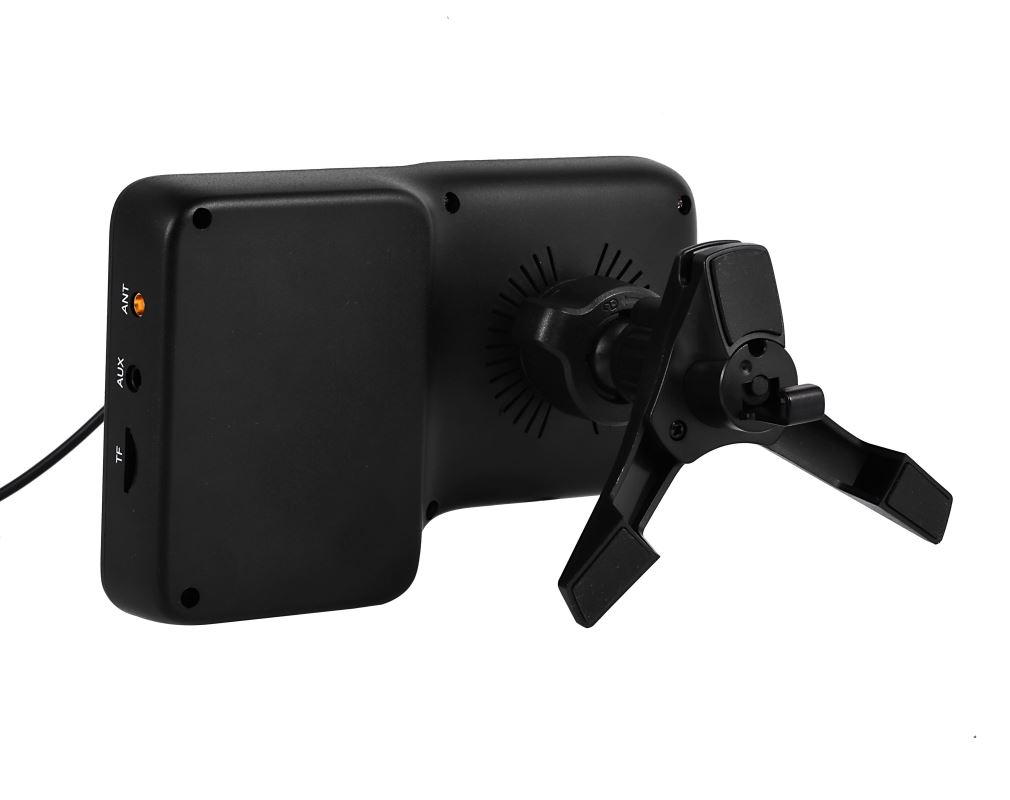

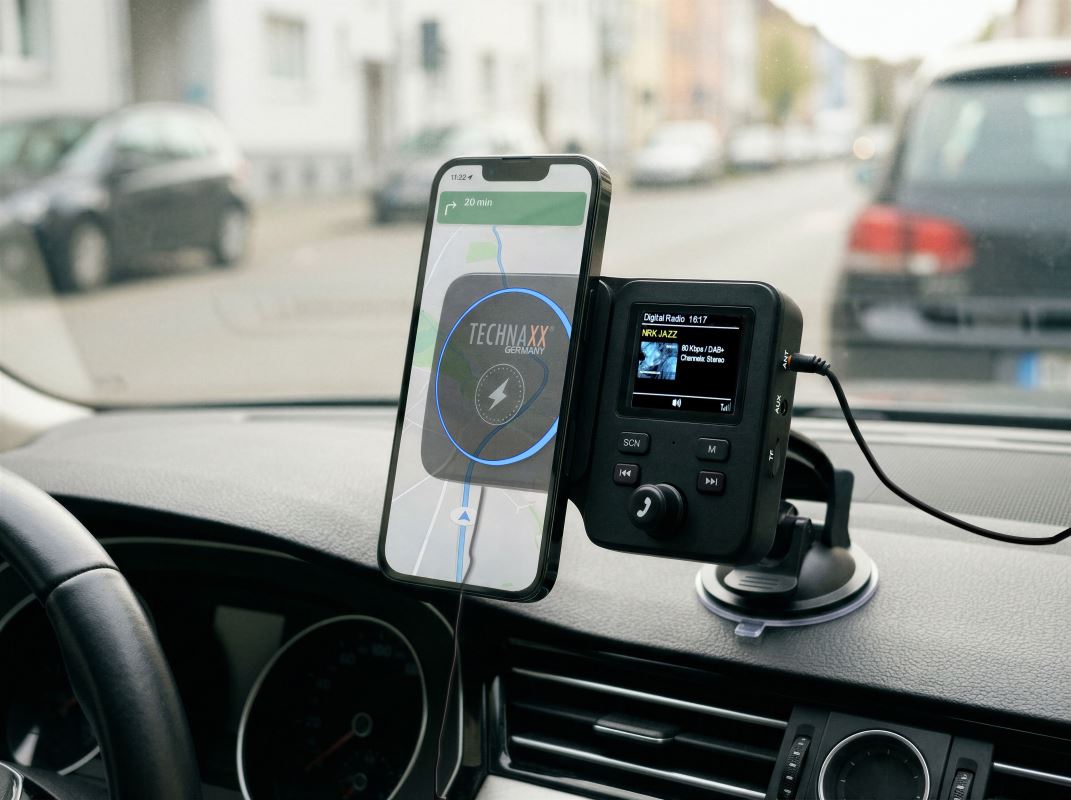

The device can be installed on the vehicle's air vent or attached to the windshield or dashboard using the suction cup mount.
The separate DAB antenna connects to the main unit and is installed on the windshield.

TECHNICAL SPECIFICATIONS
Model: Technaxx FMT1800 DAB+
PN: 5359
Display: 2" / 5.2 cm color TFT
DAB+: 174–240 MHz
FM: 87.5–108.0 MHz, 0.1 MHz increments
FM Transmission Range: Approx. 5 m
Max. Radiated FM Power: 50 µW
Bluetooth: 5.3
Bluetooth Range: Approx. 10 m
Bluetooth Frequency: 2.4 GHz
Max. Radiated Bluetooth Power: 2.5 mW
Frequency Response: 20 Hz–15 kHz
Distortion: <0.1%
Signal-to-Noise Ratio: >60 dB
Wireless Charging: 5–15 W
Wireless Charging Standards: BPP, EPP, PPDE
USB Outputs: USB-C + USB-A
USB Output: Combined 5 V / 2.4 A, max. 12 W
MicroSD: Max. 64 GB, Class 10
Supported Audio Formats: MP3, WMA
AUX-IN: 3.5 mm
Power Supply: DC 12–24 V, vehicle power socket
Cable Length: 85 cm
Material: PC + ABS
Operating Temperature: 0 to 60 °C
Wireless Charging Compatibility: Smartphones supporting wireless charging
Dimensions and Weight: 13.7 × 8.7 × 5 cm / 134 g
Package Dimensions and Weight: 18.5 × 12.5 × 11.6 cm / 311 g

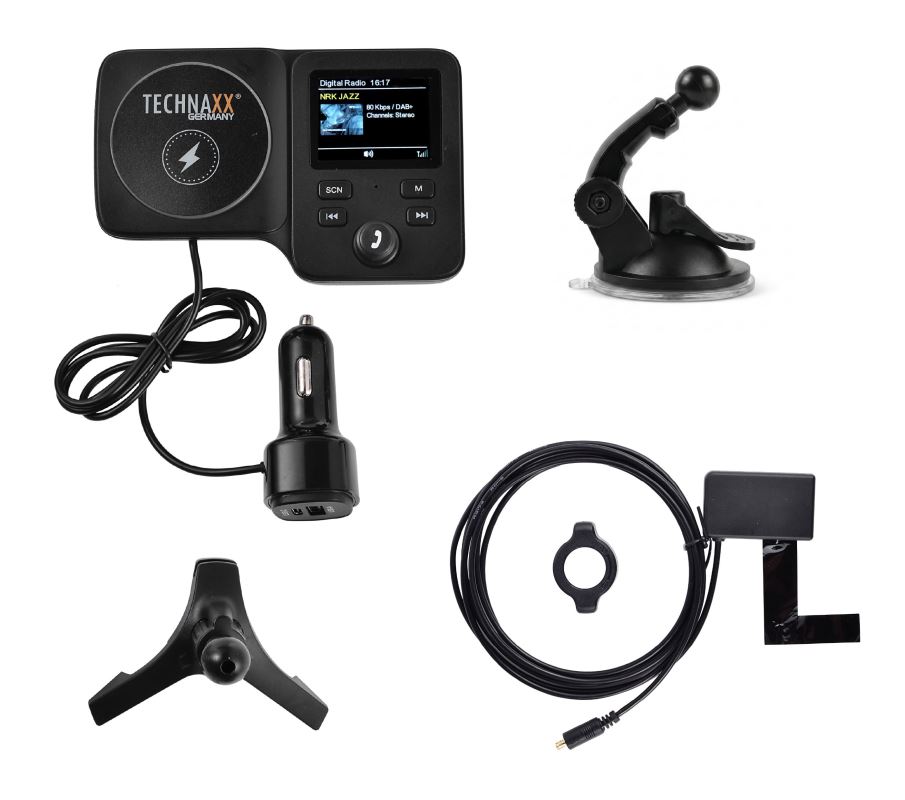

PACKAGE CONTENTS

• Technaxx FMT1800 DAB+
• 2× mount (air vent mount and suction cup mount)
• DAB antenna
• User manual

This product does not generate any data.
